AirLink IoT

Overview

AirLink is a local IoT-based system to remotely control an electric fan via a web interface over WiFi. It integrates a React web app with an ESP microcontroller (ESP8266/ESP32) and a relay module. Everything runs entirely within a local network using IP-based HTTP communication, ensuring ultra-low latency and maximum privacy.

Core Architecture

1. Hardware Setup: An ESP microcontroller connects to the local WiFi and acts as a local web server to control a relay switch connected to the fan.

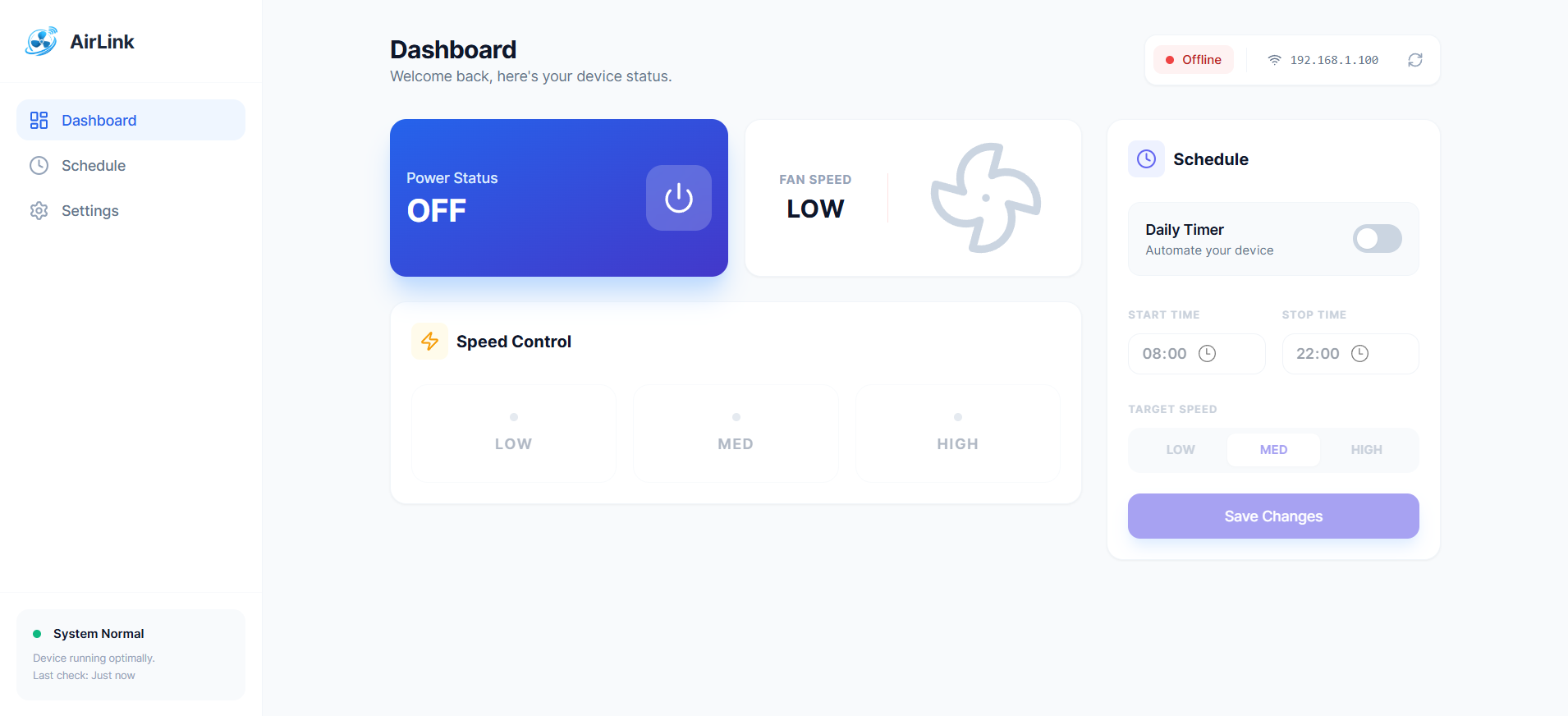

2. Web Control: A React-based web dashboard sends simple HTTP requests to the ESP's IP address to trigger the relay.

Key Components & Technologies

• Frontend: React, Vite, Tailwind CSS
• Hardware: ESP8266/ESP32, 1-Channel Relay Module, Electric Fan
• Communication Protocol: Local HTTP Requests

Controlling the Device

The ESP exposes endpoints to trigger the relay. The React app fetches these endpoints based on user interaction:

// Example of turning the fan ON
fetch('http://192.168.1.10/on');

// ESP C++ code to trigger the relay
digitalWrite(RELAY_PIN, HIGH);

Installation & Setup

1. Clone the repository:

   git clone https://github.com/Rezkydesyafa/AirLink-web-IoTFan.git
   cd AirLink-web-IoTFan


2. Install dependencies and run:

   npm install
   npm run dev


3. Access the Web Dashboard: Open http://localhost:5173 in your browser.
